Aviation Engine Compressor Blades
Gas turbine stator vanes are critical aerodynamic components within the compressor section of industrial gas turbines. Unlike rotating compressor blades, stator vanes remain stationary and are designed to guide, redirect, and condition airflow between compressor stages. Their primary function is to optimize airflow direction and pressure distribution, allowing downstream compressor blades to operate at maximum efficiency.
Although stator vanes do not rotate, their influence on compressor performance is equally important. Poor vane geometry, erosion, deformation, or dimensional inaccuracies can negatively affect compressor efficiency, pressure ratio, fuel consumption, and overall turbine performance.
At Navi Turbine, we manufacture high-precision forged stator vanes and guide vanes for industrial gas turbine applications. With over 20 years of experience in turbomachinery component manufacturing, we provide reliable replacement solutions for power generation, oil and gas, and industrial turbine operators worldwide.
The Function of Stator Vanes in Gas Turbine Compressors

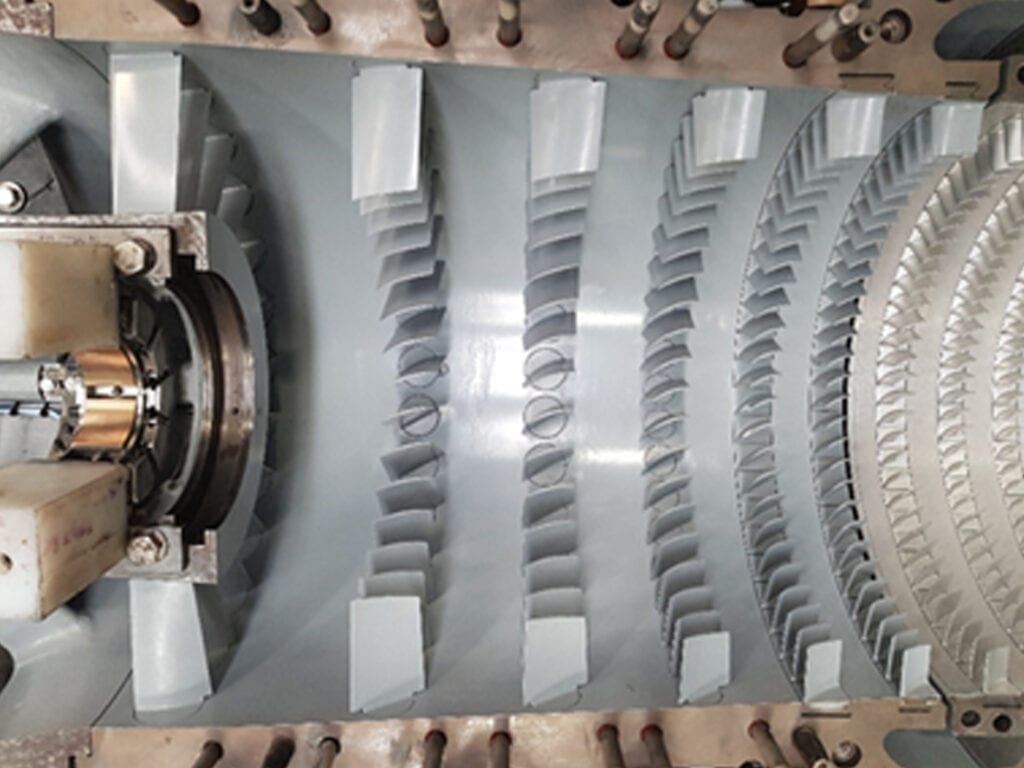

A modern axial compressor consists of alternating rows of rotating blades and stationary vanes.
The rotating blades increase air velocity and energy, while the stator vanes convert part of that velocity into pressure and properly align the airflow before it enters the next compressor stage.
This coordinated process enables the compressor to achieve high compression ratios efficiently.
The primary functions of stator vanes include:
• Directing airflow at the optimal angle
• Increasing pressure recovery
• Reducing flow separation
• Improving compressor efficiency
• Enhancing compressor stability
• Supporting surge and stall prevention
Without properly designed stator vanes, compressor performance can deteriorate significantly.
Types of Gas Turbine Stator Vanes
Several types of stator vanes are commonly used throughout gas turbine compressor systems.
Inlet Guide Vanes (IGV)
Located at the compressor inlet, inlet guide vanes control the angle at which air enters the first compressor stage.
Their purpose is to optimize airflow under varying operating conditions and improve part-load performance.
Many industrial turbines use adjustable IGVs to improve operating flexibility.

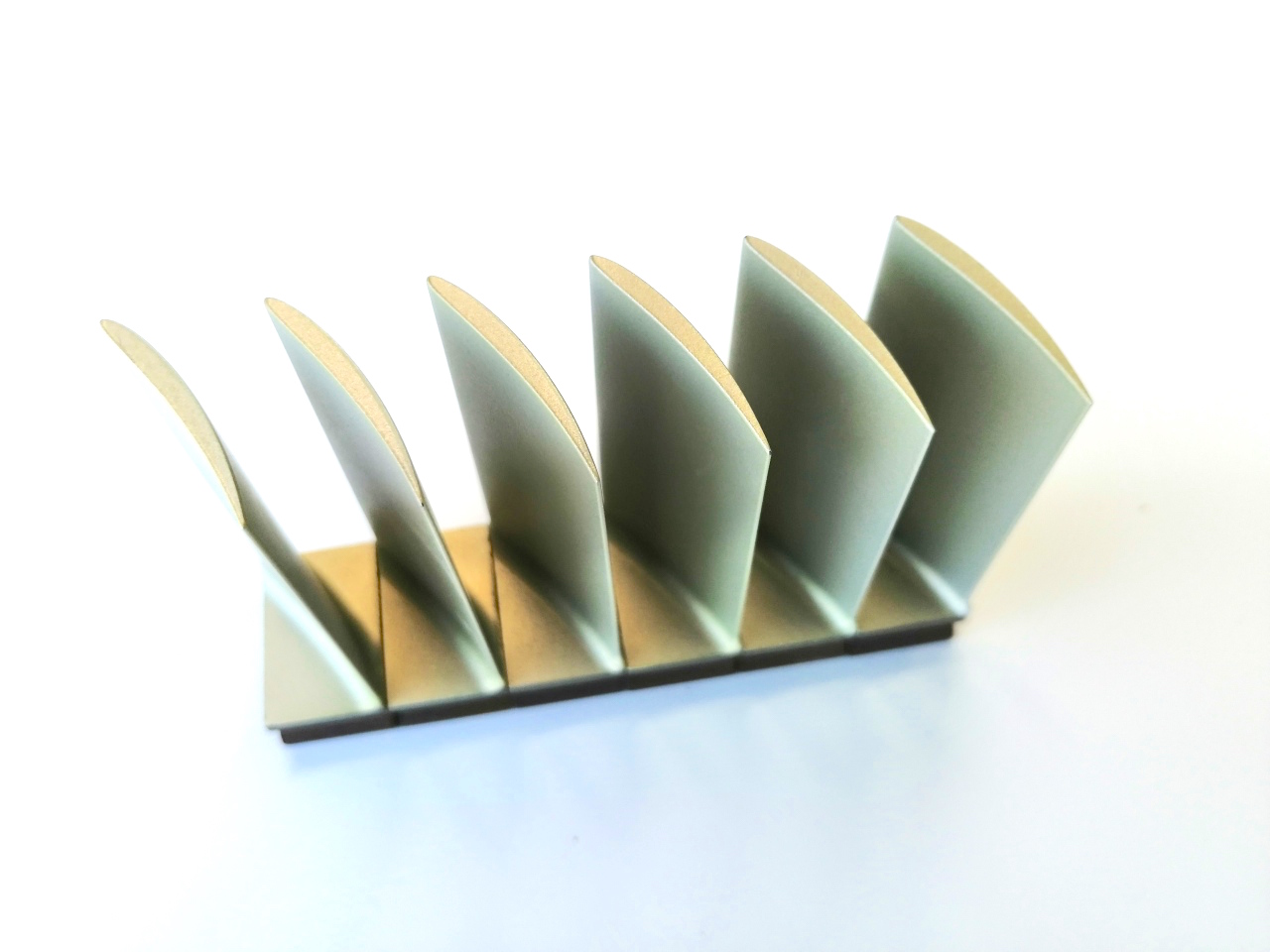

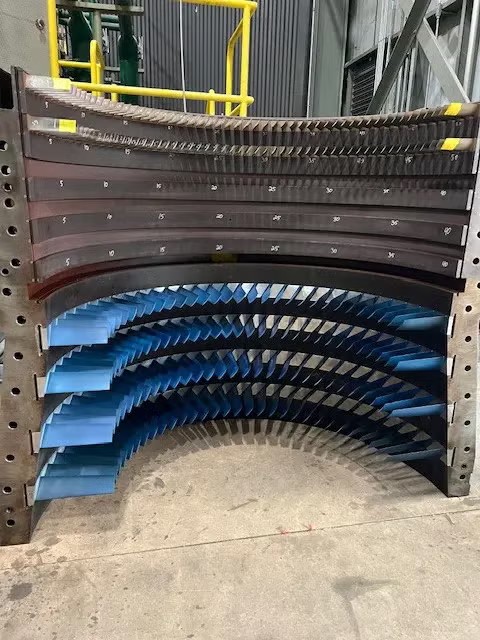

Compressor Stator Vanes
These stationary vanes are positioned between rotating compressor stages and are responsible for directing airflow from one stage to the next.
Their aerodynamic profile must be carefully designed to minimize pressure losses.

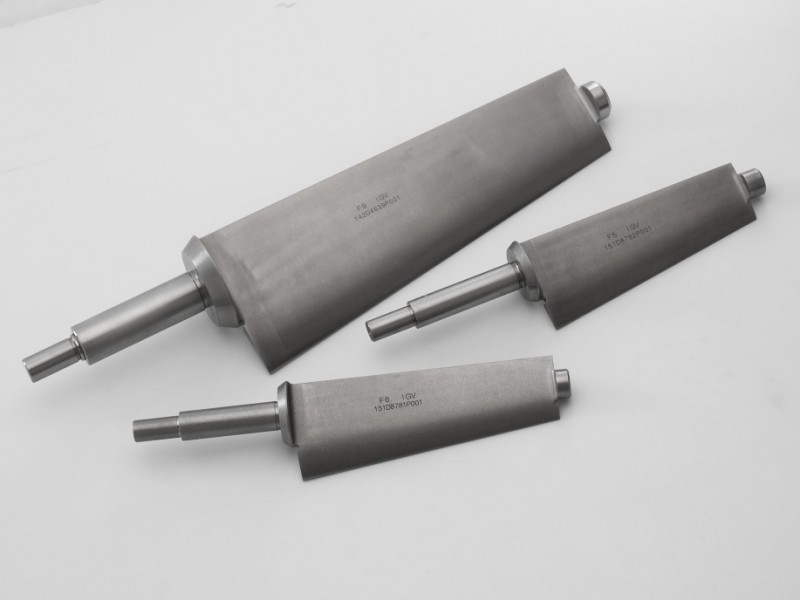

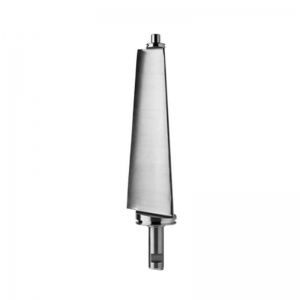

Variable Stator Vanes (VSV)
Variable stator vanes can change their angle during operation.
By adjusting vane position, operators can:
• Improve startup performance
• Reduce compressor instability
• Increase operational flexibility
• Maintain efficiency across varying load conditions
Variable stator vane systems are widely used in modern industrial gas turbines and aero-derivative turbines.
Design Challenges
Although stator vanes are stationary components, they face significant engineering challenges.
Aerodynamic Accuracy
The airfoil profile of a stator vane directly influences compressor airflow behavior.
Small geometric deviations may cause:
• Reduced efficiency
• Increased turbulence
• Higher pressure losses
• Compressor instability
Therefore, dimensional accuracy is critical.
Vibration Loading
Stator vanes experience aerodynamic excitation caused by rotating compressor blades passing nearby.
Repeated vibration can contribute to fatigue damage over long operating periods.
Corrosion and Erosion
Power plants operating in desert, offshore, coastal, or industrial environments frequently expose compressor components to contaminants.
Sand, dust, moisture, salt particles, and airborne debris gradually erode vane surfaces and affect aerodynamic performance.
Thermal Stress
Gas turbines experience repeated startup and shutdown cycles that subject stator vanes to thermal expansion and contraction.
Long-term exposure can contribute to distortion and material degradation.
Why Forged Stator Vanes?
Several manufacturing routes are available for stator vane production, including casting, fabrication, and forging.
For many applications, precision forging offers substantial benefits.
Forged stator vanes typically provide:
• Superior grain structure
• Higher fatigue resistance
• Better mechanical properties
• Improved impact resistance
• Greater dimensional stability
These advantages become increasingly important for high-performance turbine applications where reliability and long service life are essential.
At Navi Turbine, our advanced precision forging technology allows us to produce near-net-shape vane components with exceptional consistency.
The reduced machining requirement not only improves production efficiency but also minimizes material waste and manufacturing costs.
Materials
Gas turbine stator vanes are commonly manufactured using high-performance alloys selected according to operating conditions.
Material options may include:
• Stainless steel alloys
• Martensitic steels
• Nickel-based alloys
• Heat-resistant superalloys
• Corrosion-resistant specialty materials
Material selection depends on factors such as operating temperature, compressor stage location, environmental conditions, and customer specifications.
Reverse Engineering for Legacy TurbinesMany gas turbine operators continue to maintain fleets that are decades old.
Obtaining replacement stator vanes for these turbines can be difficult due to:
• Obsolete turbine models
• OEM discontinuation
• Long lead times
• High replacement costs
Navi Turbine specializes in reverse engineering solutions for legacy gas turbine components.
Customers may provide:
• Original engineering drawings
• Existing vane assemblies
• Used components
• Damaged stator vanes
Our engineering team can reconstruct critical aerodynamic profiles and dimensional characteristics, enabling rapid production of replacement components.
This capability helps operators extend equipment life while reducing maintenance costs.
Typical Applications
Our stator vanes are used in:
• Utility power generation turbines
• Combined-cycle power plants
• Oil and gas compressor stations
• Petrochemical facilities
• Industrial cogeneration systems
• Aero-derivative gas turbines
• Legacy gas turbine maintenance programs
Quality ControlTo ensure consistent performance, every stator vane undergoes comprehensive inspection procedures.
Quality verification may include:
• Dimensional inspection
• Coordinate measurement
• Material verification
• Non-destructive testing
• Surface quality inspection
• Mechanical property testing
This ensures that each component meets customer requirements before shipment.
Why Choose Navi TurbineNavi Turbine combines decades of turbomachinery manufacturing experience with advanced precision forging technology to deliver reliable gas turbine stator vane solutions.
Whether customers require replacement compressor guide vanes, variable stator vanes, inlet guide vanes, or complete reverse-engineered components, our engineering and manufacturing teams provide responsive support and dependable quality.
From planned maintenance projects to urgent outage situations, we help turbine operators obtain critical stator vane components quickly and cost-effectively, ensuring continued turbine performance and operational reliability.
